Heavy Duty Submersible Slurry Pump For Industrial Use

If you've ever had to move thick, abrasive, or solids-laden liquid out of a sump, pit, or pond, you already know that a regular water pump just won't cut it. That's where submersible slurry pumps come in - and over the years working around mining sites, dredging projects, and wastewater plants, I've picked up a fair bit about what makes these machines tick. Let me walk you through it.Heavy Duty Submersible Slurry Pump for Industrial Use

What Is a Heavy Duty Submersible Slurry Pump for Industrial Use, Really?

In simple terms, it's a pump designed to sit underwater (or partially submerged) and push out a mixture of liquid and solids - sand, gravel, mud, tailings, sludge, coal slurry, you name it. Unlike a horizontal slurry pump that needs priming and a separate motor sitting on the surface, this one drops straight into the pit and gets to work.

The motor is sealed inside a watertight housing, usually with double or triple mechanical seals plus an oil chamber for cooling and lubrication. That sealing system is honestly the heart of the whole machine - get a leak there, and you've got a dead motor.

Heavy Duty Submersible Slurry Pump for Industrial Use Where People Actually Use Them

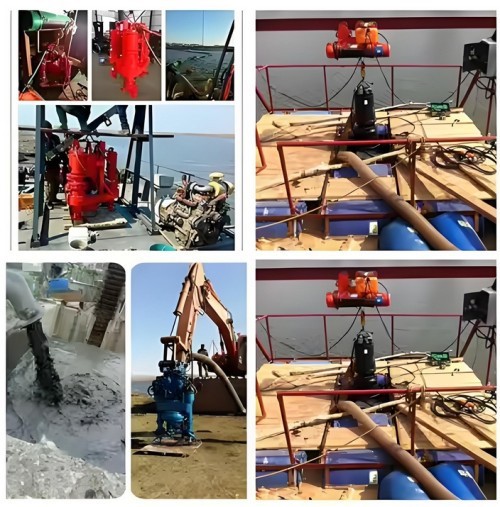

I've seen these pumps deployed in all kinds of places:

Mining and mineral processing - pumping tailings, mill discharge, and dewatering shafts

Sand and gravel pits - moving sand-water mixtures during dredging

Coal washing plants - handling coal slurry and fines

Power stations - fly ash and bottom ash removal

Construction sites - keeping foundation pits dry where the water is full of mud

Dredging rivers, ports, and lagoons - sometimes mounted on small dredge boats

Steel mills - scale pits and roll cooling water containing iron oxide

Basically, anywhere the liquid has enough abrasive solids in it that a normal pump would chew itself to pieces within weeks.

Key Parts and Why They Matter

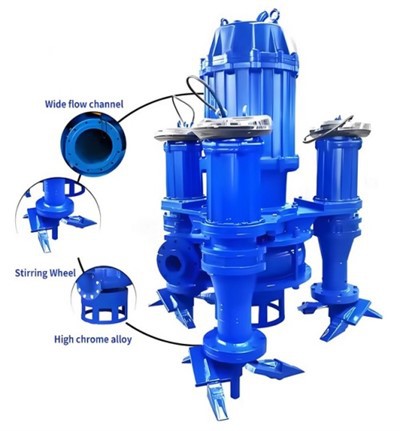

Impeller - Usually a closed or semi-open type made from high-chrome alloy (often something like Cr26 or A05). High chrome resists abrasion much better than regular cast iron or stainless steel when you're dealing with sharp particles.

Volute / Pump Casing - Also high-chrome wear-resistant alloy. The thicker the casing, the longer the pump lasts, but obviously the heavier and more expensive it gets.

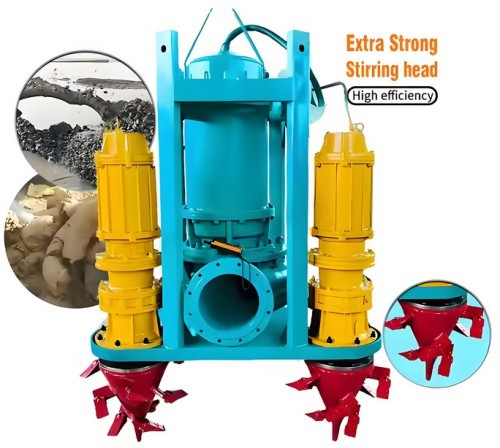

Agitator - This is a big deal. Most decent Heavy Duty Submersible Slurry Pump for Industrial Use have an agitator (basically a stirring blade) mounted under the suction inlet. It stirs up settled solids so the pump can actually suck them in, instead of just pumping clear water off the top while the heavy stuff sits at the bottom of your pit.

Motor - Typically a squirrel cage induction motor, IP68 rated, Class F or H insulation. Bigger units come with built-in thermal protection and moisture sensors that shut the pump down before damage spreads.

Seals - Usually a double mechanical seal in an oil bath. Silicon carbide vs silicon carbide is the standard for slurry duty. If anyone tries to sell you a slurry pump with just a single lip seal, walk away.

Specs You Should Pay Attention To

When picking a pump, don't just look at flow and head. Other things matter just as much:

Maximum particle size it can pass - usually given in mm

Maximum solids concentration by weight - typically 30–70% depending on model

Discharge size - 2", 3", 4", 6", 8" and up

Material of wet parts - high chrome is standard, rubber-lined exists for finer abrasives

Cable length - make sure you've got enough to reach the surface plus your control box

Voltage - 380V/415V/440V three-phase is most common for industrial units

A Few Honest Tips from Experience

Don't undersize the motor. Slurry is heavier than water. A pump rated for clean water at a certain head will deliver less when you're moving 1.4 SG slurry, and the motor will draw more amps. Always check the power curve at your actual slurry density.

Mind the wear parts. Impellers and volutes are consumables on these pumps. Keep spares. Lead times can be brutal if you wait until the pump fails.

Don't run it dry. Even though it's a "submersible," running it without enough liquid cover will overheat the motor fast. Some models have cooling jackets that allow partial submersion, but check the spec sheet.

Check the oil regularly. If the oil in the seal chamber turns milky, water has gotten in. Change it and watch closely - your seal is on the way out.

Lift it by the chain, not the cable. I've seen way too many pumps come back for warranty claims where someone yanked them out of a pit by the power cable. That's a no-go.
