Horizontal Slurry Pump For Mining

Horizontal Slurry Pump for Mining Product Introduction Hello there. Looking for a reliable, heavy-duty solution to move your toughest abrasive and corrosive slurries? Meet our flagship Horizontal Slurry Pump for Mining Series. This isn't just another pump; it's a purpose-built,...

Send Inquiry

Description

Horizontal Slurry Pump for Mining Product Introduction

Hello there. Looking for a reliable, heavy-duty solution to move your toughest abrasive and corrosive slurries? Meet our flagship Horizontal Slurry Pump for Mining Series. This isn't just another pump; it's a purpose-built, field-proven workhorse designed for the brutal realities of mining, mineral processing, and industrial wastewater. We've engineered it from the ground up to maximize uptime, minimize maintenance costs, and deliver consistent performance where it matters most-in your plant, 24/7.

Here's a breakdown of what makes this pump a standout choice for your operations:

Horizontal Slurry Pump for Mining Robust & Service-Friendly Design

Dimension: The horizontal, centerline, suction/discharge design ensures a stable hydraulic footprint and easy alignment. The back-pullout design is a game-changer-you can remove and replace the entire wet end (impeller, liner, seal) without disturbing the pump casing or drive. This cuts maintenance time by up to 70%.

Shaft & Bearing System: A massive, oversized shaft supported by heavy-duty, tapered roller bearings in a separate, sealed bearing house. This isolates the bearings from the slurry, dramatically extending their life.

01.

Superior Wear Materials

Dimension: We offer a full spectrum of wear-resistant materials to match your specific slurry's abrasiveness and pH.

Selling Point: From our standard high-chrome iron (ASTM A532) for general abrasion to our premium ceramic-lined options for extreme conditions, you get the exact material science you need. No over-engineering, no premature failure.

02.

Optimized Hydraulic Performance

Dimension: The fully open, low-velocity, large-flow-path impeller and volute casing.

Selling Point: This "no-clog" design handles oversized particles and high-density slurries with ease. The optimized hydraulics reduce turbulence and wear, leading to higher efficiency and lower energy consumption per tonne moved compared to many competitors.

03.

Versatile Seal Solutions

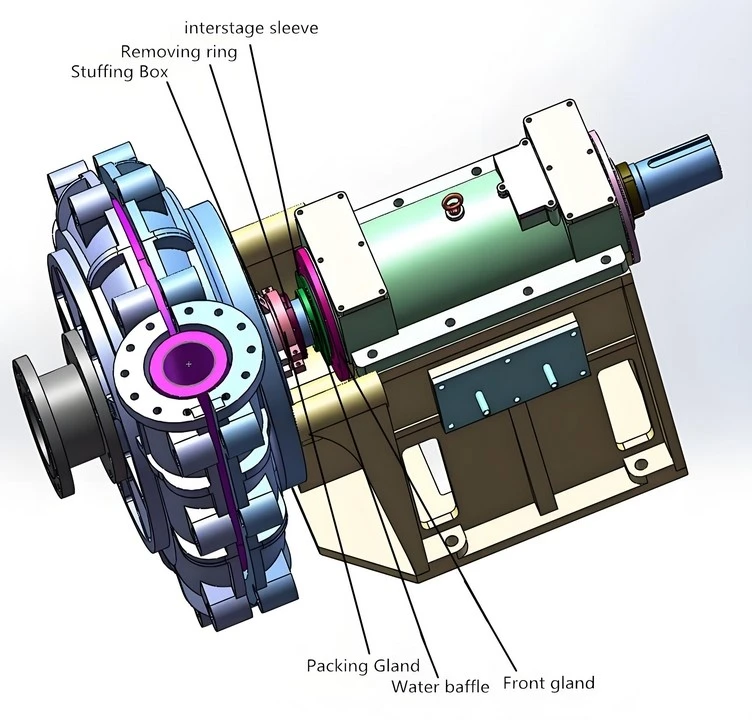

Dimension: We offer three seal configurations to fit any application and budget: gland packing (with flush water), mechanical seals (single/double, cartridge type), and seal-less (magnetically driven) options.

Selling Point: Our mechanical seal systems are designed for easy access and come with comprehensive flush plans to protect the seal face from the slurry, ensuring long, leak-free service life.

04.

Wide Application Range

Dimension: Available in sizes from 2-inch (50mm) to 12-inch (300mm) discharge, with capacities up to 2,500 m³/h and heads to 80m.

Selling Point: This is a modular platform. Whether you need a small sump pump for a wash plant or a high-flow, high-head main transfer pump for a concentrator, we have a configured model ready for you.

FAQ

01.How do I choose the right wear material for my slurry?

Great question. It all depends on your slurry's abrasiveness (Abrasion Index), corrosiveness (pH), and solid particle size. For most mining applications with moderate abrasion, our standard high-chrome iron is perfect. For very high abrasion with low corrosion, we recommend our "T" grade or even tungsten carbide inserts. For corrosive slurries (low pH), we have rubber-lined or special alloy options. Tell us about your slurry's composition, and we'll recommend the most cost-effective, long-lasting material.

02.What's the real advantage of the back-pullout design?

It's all about downtime and cost. In a traditional pump, to change the wear parts, you often have to disconnect the drive, drain the casing, and sometimes even remove the pump from the baseplate. With our back-pullout, you simply open the casing, unbolt the bearing housing, and pull the entire rotating assembly straight out the back. The casing and drive stay put. This means maintenance can be done in hours, not days, and alignment is guaranteed.

03.Do you provide spare parts and service support in my region?

Absolutely. We maintain a strategic global inventory of critical spare parts (shafts, bearings, seal kits, wear liners, impellers). More importantly, we work with a network of authorized service partners and distributors worldwide who are trained on our pump series. We can provide you with a recommended spare parts list tailored to your critical spares policy.

04.Can this pump handle large, stringy debris or rags?

While our open impeller design is excellent for solids, it is not a trash pump. It is optimized for granular, sand-like, or small rock slurries. For applications with significant fibrous material (rags, plastic, wood), we would typically recommend a different pump type, like a vortex or a cutter pump. Send us a sample description of your solids, and we'll confirm suitability.

05.What is the warranty and expected lifespan?

Our standard warranty is 18 months from shipment or 12 months from commissioning, whichever comes first, covering defects in materials and workmanship. The actual wear life of the wet end parts (liner, impeller) is highly application-dependent. In a typical iron ore application, you can expect 6,000 to 12,000 hours of operation before a major wear part replacement is needed. We can provide references from similar applications for a more precise estimate.

06.Is the pump difficult to install and align?

Not at all. The pump is designed for simple, robust installation. We provide a detailed foundation and alignment drawing. The key is a solid, level foundation and proper grouting. The bearing housing has slotted holes for easy shimming. For the best results, we always recommend a laser alignment by a qualified technician during initial installation, which takes less than an hour for this pump size. The result is a perfectly aligned shaft that will run smoothly for years.
