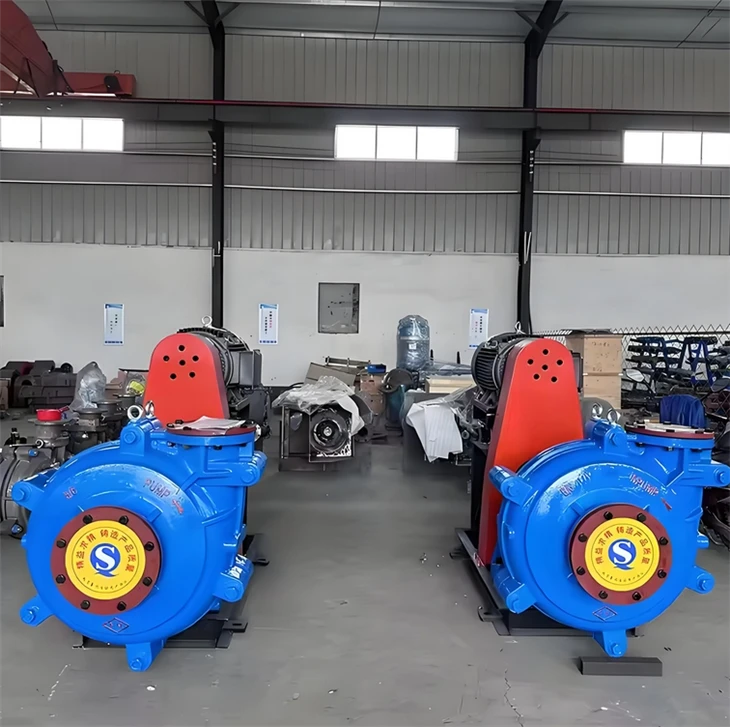

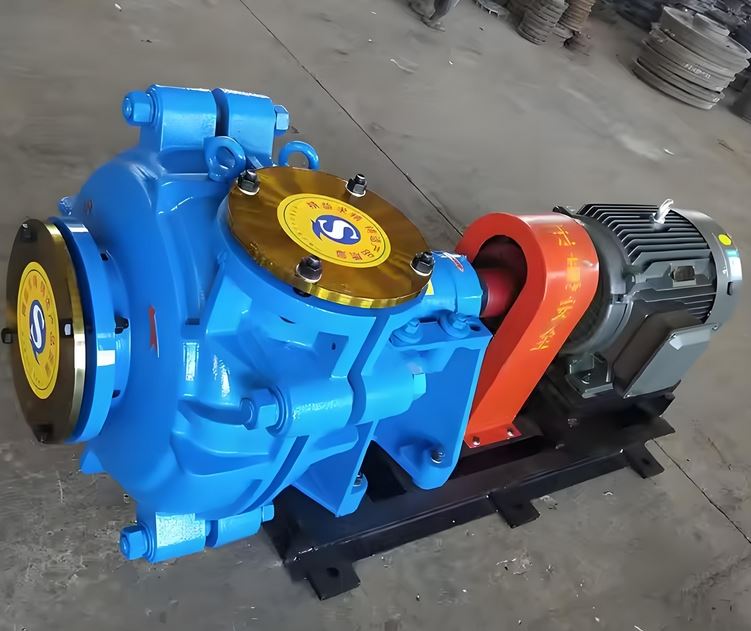

Heavy Duty Horizontal Centrifugal Slurry Pump

The Heavy Duty Horizontal Centrifugal Slurry Pump AH series slurry pumps are mainly composed of the pump body, impeller, guard plate, bearings, and sealing components. The pump body is made of wear-resistant materials, capable of withstanding the erosion and wear of the slurry. The impeller is the core component of the pump, generating centrifugal force through high-speed rotation to push the slurry towards the outlet. The guard plate is used to protect the impeller from being hit by solid particles. The bearings and sealing components ensure the stable operation and sealing performance of the pump.

High wear resistance: The AH series slurry pumps are made of wear-resistant materials, which can withstand the erosion and wear caused by solid particles in the slurry. They have a high reputation and can operate stably for a long time.
2. Wide application range: This pump is suitable for transporting various concentrations of slurry, including high-concentration and high-viscosity slurry, and can meet the transportation requirements under different working conditions.

3. Simple maintenance: The AH series slurry pumps have a simple structure and are easy to maintain. Users can easily carry out daily maintenance and upkeep.
4. Stable operation: This pump is manufactured with advanced techniques and uses high-quality components, thereby enhancing the stability and reliability of the pump's operation.

The Heavy Duty Horizontal Centrifugal Slurry Pump working principle of the AH series slurry pumps is similar to that of other centrifugal pumps. They both generate centrifugal force through the rotation of the impeller, enabling the slurry to gain energy and be transported to the outlet. When the pump is started, the motor drives the impeller to rotate at high speed. The slurry is pushed into the pump body by the impeller and acquires energy under the rotation of the impeller, thus being pushed towards the outlet. The presence of the guard plate can reduce the impact of solid particles on the impeller, thereby extending the service life of the pump.

Maintenance and Care of AH Series Slurry Pumps
In order to ensure the normal operation and extend the service life of the AH series slurry pumps with high popularity, users need to carry out regular maintenance. The specific measures are as follows:
Regularly inspect the wear conditions of components such as the pump body, impeller, and guard plate. If any wear is found, replace them promptly.
2. Regularly inspect the operating conditions of the bearings and seals. If any abnormalities are found, they should be dealt with promptly.
3. Regularly clean the pump to remove impurities and deposits inside it, ensuring the smooth operation of high-profile pumps.
4. Regularly inspect the operating condition of the motor to ensure its smooth operation.
Through the above maintenance measures, the long-term stable operation and extended service life of the AH series slurry pumps can be achieved.

heavy duty horizontal centrifugal slurry pump

The AH slurry pump is a type of horizontal, vertical mid-mounted, double pump housing centrifugal pump specially designed for transporting liquids containing suspended solid particles. It is widely used in industries such as metallurgy, mining, coal, power, and construction materials, especially in situations where strong corrosive and high-concentration slurry needs to be conveyed.
Main application fields
Metallurgy: Used for treating the slurry produced during the ore washing and selection process.
Mine: The slurry generated during the transportation of minerals during the mining process.
Coal: Used for draining water in coal mines and for treating coal gangue.
Electricity: Handling ash and water in thermal power plants.
Building materials: Used for transporting slurry during the cement production process.
Application Examples of AH Slurry Pumps
Typical application scenarios

Heavy media coal separation process: Used for treating the slurry during the coal screening process.
Hydraulic ash and slag removal system of power station: It is used to handle ash and slag in power plants and deal with water.
Furnace slag removal: The process of removing slag during iron smelting in a blast furnace.
Colored and black mines: Used during the mining and processing of ores

Structural features of AH slurry pump
Pump body and impeller design
The pump body and impeller of the AH slurry pump are both made of wear-resistant metal or rubber materials. Especially for the AHH type pump, only wear-resistant metal is used for the inner lining of the pump body and the impeller to enhance the pump's wear resistance and service life.
Shaft seal and transmission method
Shaft seal: It can adopt packing seal, auxiliary impeller seal or mechanical seal to effectively prevent medium leakage.
Drive methods: including V-belt drive, elastic coupling drive, gear reducer drive and other types, to meet the demands of different working conditions.
Performance parameters of AH slurry pump
Flow rate and head range
The flow rate and head of the AH slurry pump have a wide range, and the specific parameters depend on the model and design of the pump. For instance, the flow rate of some models of the AH slurry pump can reach 223.2 cubic meters per hour, and the head can reach a certain height.
Material and wear resistance
The material selection for the pump body and impeller aims to enhance wear resistance and corrosion resistance to adapt to harsh working conditions. The AHH type pump particularly emphasizes high wear resistance and is suitable for long-term high-load operation.
