Sand Slurry Dredge Pump

Name: China Sand Slurry Dredge Pump Manufacturers - Customized Sand Slurry Dredge Pump Quotation - Jovidia
Brand: Jovidia
SKU: 280459694

Products Description sand slurry dredge pump Pump head Pumps are designed with double volute that pump body and cover has been fitted with metal or rubber liner(included impeller, liner insert, insert plate),but no rubber liner for type-AHP,HP&HH pumps A cast iron or S.G.Iron of pump body...

Send Inquiry

Description

Products Description

sand slurry dredge pump Pump head Sand Slurry Dredge Pump

Pumps are designed with double volute that pump body and cover has been fitted with

metal or rubber liner(included impeller, liner insert, insert plate),but no rubber liner for

type-AHP,HP&HH pumps A cast iron or S.G.Iron of pump body and cover depending on the

working pressure,casing split body is bolted and spigotted to the frame and the discharge

branch may relieve the leakage and raise the life and efficiency of pump

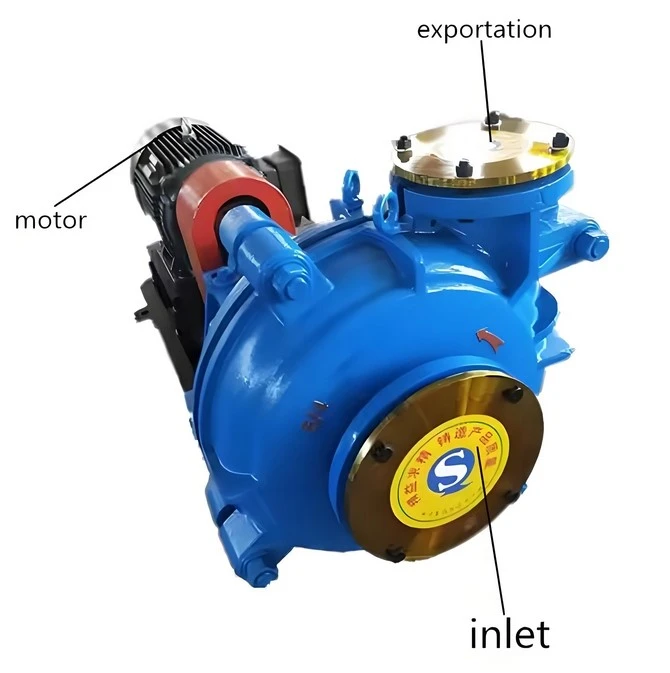

nlet of pump is on the horizontal direction and pump should rotates clockwise in view of

driving direction

Shaft Sealing Assembly Sand Slurry Dredge Pump

Two kinds of shaft seal-expeller type shaft sealing and gland packing assembly

1Expeller Type Shaft Sealing AssemblyFor the single stage pump and first stage pump of multi-stage series the expeller type shaft

sealing assembly is normally fitted when the positive pressure of inlet is larger 10% than that

of outlet.Expeller type sealing assembly has the advantages of not requiring flushing water,no

diluting pulp,good sealing result and so on

Gland Packing Seal

The gland packing seal is single and easy maintenance,but must require the flushing water

service.For the duties where are not suitable for expeller seal the packed gland should be

used.

sand slurry dredge pump Driving Assembly Sand Slurry Dredge Pump

All types of slurry pump may be adopted with the same series of driving

assembly,included frames and bearing assemblies.A extremely rigid shaft of larger diameter

with short overhang to impeller eliminates deflection and vibration under all condition of

use.Large,wide,heavy duty,grease lubricated single or double rows taper roller bearings and

roller bearings are fitted based on the transmitting pump duty and have an unusually long life

factor.Spigotted end covers close the housing and carry Labyrinth.sleeve and ring (bearing

seal )to prevent slurry and dirty entering in bearings.

Model parameters

No.	Part Description	MaterialSpecification
1	Base	Cast Iron
2	Shaft	L140 High Tensile Steel"
3	Bearing Assembly	Timkin [Cast Iron Bodyl
4	Shaft Sleeve	620 Stainless Steel
5	Pump Casing	Cast Iron
6	Frame Plale Liner	27%Ohrome White Iron
7	Volute Liner	27%Chrome White Iron
8	Impell er	27%Ohrome White Iron
9	Throat Bush	27%Chrome White Iron
10	Joint Rings	Rubber
11	Cover Plate	Cast Iron
12	Stuffing Box	Cast Iron
13	Expeller	27%Chrome White Iron
14	Expeller Ring	Natural Rubber
	Bolts	Zinc Plated Steel
	0-rings	Nitrile Rubber
	Seal	Rubber

Application scenario

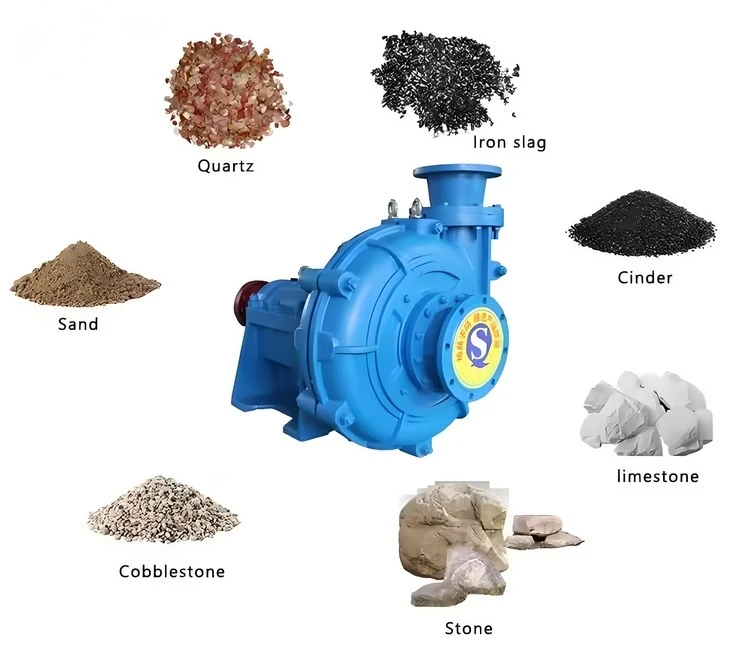

Horizontal slurry pumps are cantilevered centrifugal pumps, they have been designed

for the handing of highly abrasive or corrosive high density slurries, which are widely used in

Metallurgical, Mining, Coal, Petroleum&Chemical, Transportation, River&Channel dredging,

Building material and Municipal project

This type of pump is high speed,smallest,light-weight and suitable for transporting fine

particle lower density slurry(the maximum concentration in weight does not exceed 30%) It

can be used for transporting high density lower abrasive slurry too.
