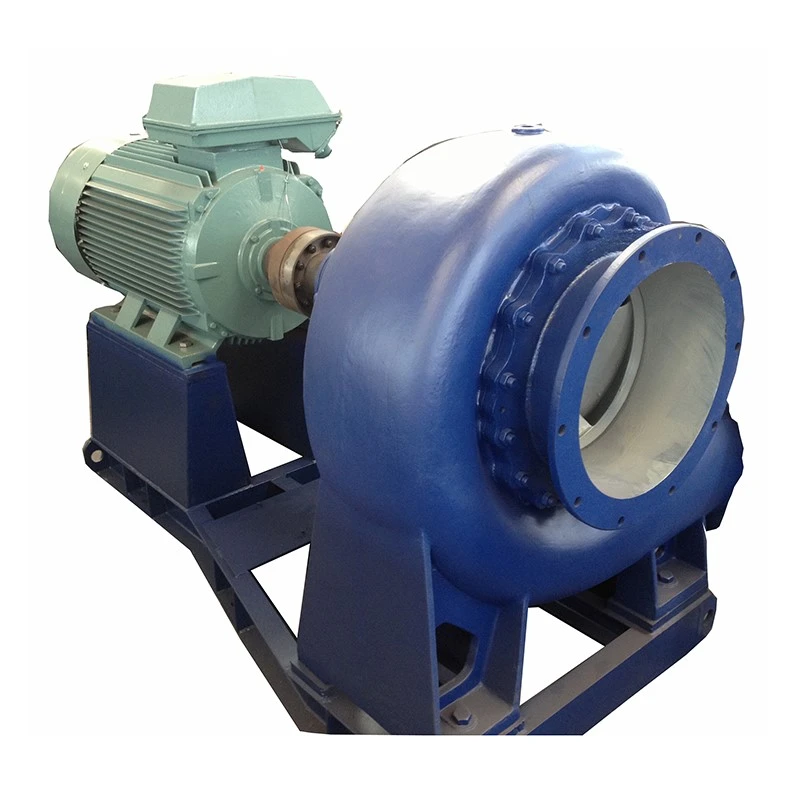

Mixed flow pump is a horizontal, single-stage, single-suction pump. Suitablefor conveying clean water or other liquids with physical and chemical properties similar to water. The temperature of the conveyed liquid should not be higher than 50℃.Widely used in farmland irrigation, industrial and urban water supply and drainage and other occasions.
Chart
1.Pulley
2.Gear cover
3.Bearing
4.Bearing body end cover
5.Pump body
6.Plug
7.Impeller
8.Impeller nut
9.Pump cover
10.Bearing body
11.shaft
12.Packing gland
13.Packing
14.Packing ring
15.Shaft sleeve
16.Paper pad
17.Impeller nut
300HW-7S
300:Pump inlet and outlet diameter(mm)
HW:Vortex shell mixed flow pump
7:head(m)
S:structural style
1.Simple structure, reliable use, convenient decoration, high efficiency, small size, and light weight.
2.The transmission methods include direct transmission and variable speed transmission. The commonly used power engines are electric motors and diesel engines.

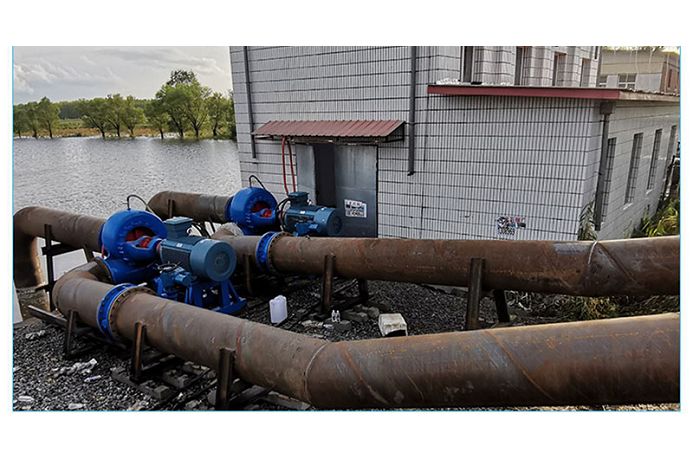

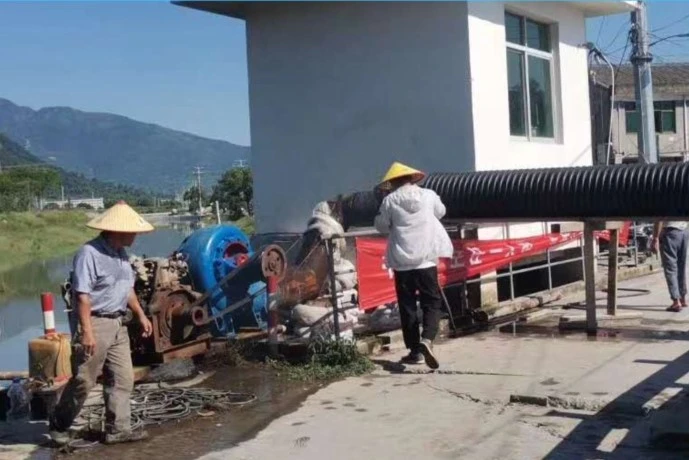

Application scenarios
performance parameter
|
Type |
Capacity |
Head (m) |
Speed (r/min) |
Effciency (%) |
Shaft power (Kw) |
NPSH (m) |
|
|
(L/S) |
(m3/h) |
||||||
|
100HW-5 |
25 |
90 |
5.0 |
2900 |
79 |
1.55 |
4.0 |
|
100HW-8 |
25 |
90 |
8.0 |
2900 |
81 |
2.42 |
4.0 |
|
100HW-12 |
25 |
90 |
12.5 |
2900 |
81 |
3.78 |
4.0 |
|
150HW-5 |
50 |
180 |
5.0 |
1450 |
82 |
2.99 |
2.7 |
|
150HW-8 |
50 |
180 |
8.0 |
1450 |
82 |
4.78 |
2.7 |
|
150HW-12 |
50 |
180 |
12.5 |
2900 |
82 |
7.47 |
6.0 |
|
200HW-4 |
95 |
340 |
4 |
1060 |
81 |
4.60 |
4.0 |
|
200HW-5 |
100 |
360 |
5.0 |
1450 |
81.5 |
6.01 |
4.0 |
|
200HW-8 |
100 |
360 |
8.0 |
1450 |
83.5 |
9.39 |
4.0 |
|
200HW-12 |
100 |
360 |
12.5 |
1450 |
83.5 |
14.68 |
4.0 |
|
250HW-4 |
125 |
450 |
4.2 |
980 |
82.5 |
6.30 |
4.0 |
|
250HW-5 |
150 |
540 |
5.0 |
1180 |
82 |
8.97 |
4.0 |
|
250HW-7 |
125 |
450 |
7.0 |
980 |
83 |
10.5 |
4.0 |
|
250HW-8 |
150 |
540 |
8.0 |
1180 |
84 |
14.01 |
4.0 |
|
250HW-12 |
150 |
540 |
12.5 |
1180 |
84 |
21.88 |
4.0 |
|
300HW-4 |
197 |
710 |
4.0 |
780 |
83.5 |
4.40 |
4.0 |
|
300HW-5 |
220 |
792 |
5.0 |
970 |
83 |
12.99 |
4.0 |
|
300HW-7 |
216 |
780 |
7.0 |
980 |
84 |
17.70 |
4.0 |
|
300HW-8 |
220 |
792 |
8.0 |
970 |
85 |
20.30 |
4.0 |
|
300HW-12 |
220 |
792 |
12.5 |
970 |
85 |
31.72 |
4.0 |
|
350HW-4 |
278 |
1000 |
4.3 |
980 |
85 |
16.6 |
4.5 |
|
350HW-8 |
278 |
1000 |
8 |
980 |
85.5 |
25.5 |
4.5 |
