summary

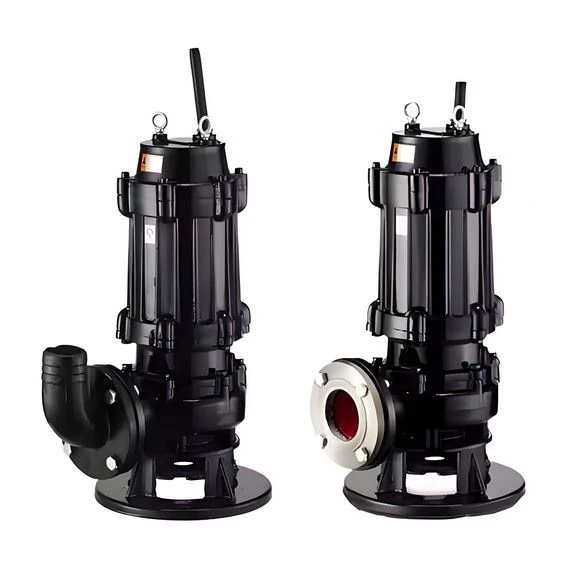

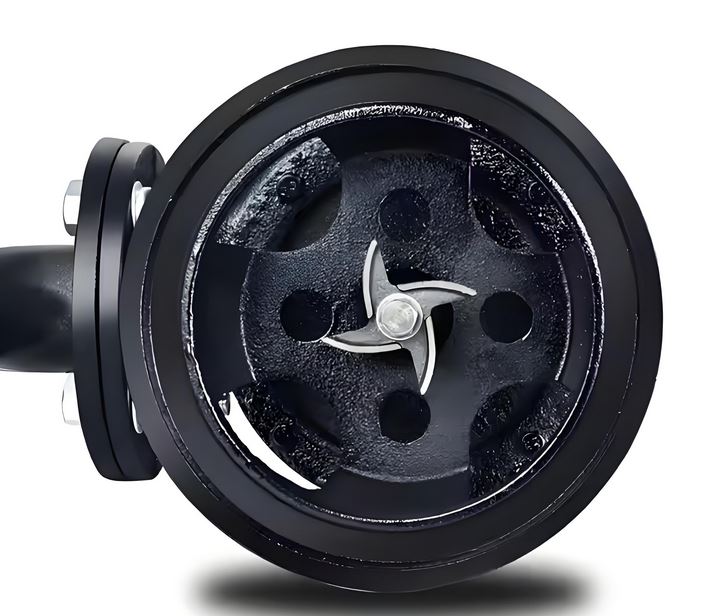

Cast iron submersible sewage pump has strong wear resistance and certain corrosion resistance. Its overcurrent design features anti-clogging and anti-tangling properties, making it highly effective in discharging sewage containing hard solid particles and long-fiber debris.
The WQ sewage lift pump series does not require fixed installation. It can be connected via rubber hoses or flange pipelines, and the pump can operate underwater. Additionally, it can be equipped with an automatic coupling device for easy lifting and lowering of the pump body, simplifying maintenance and disassembly.
The fully protected WQ sewage pump effectively prevents motor overload, oil chamber leakage, casing leakage, and electrification. It requires a dedicated control cabinet. For applications involving highly corrosive liquids or severe pump body wear, our company offers customized designs to address every detail and solve customer problems.
Product Features
The WQ sewage pump adopts advanced double-end mechanical seal technology, significantly improving service life and operational stability.
Compact size, low noise, easy mobility, low procurement cost, and simple operation.

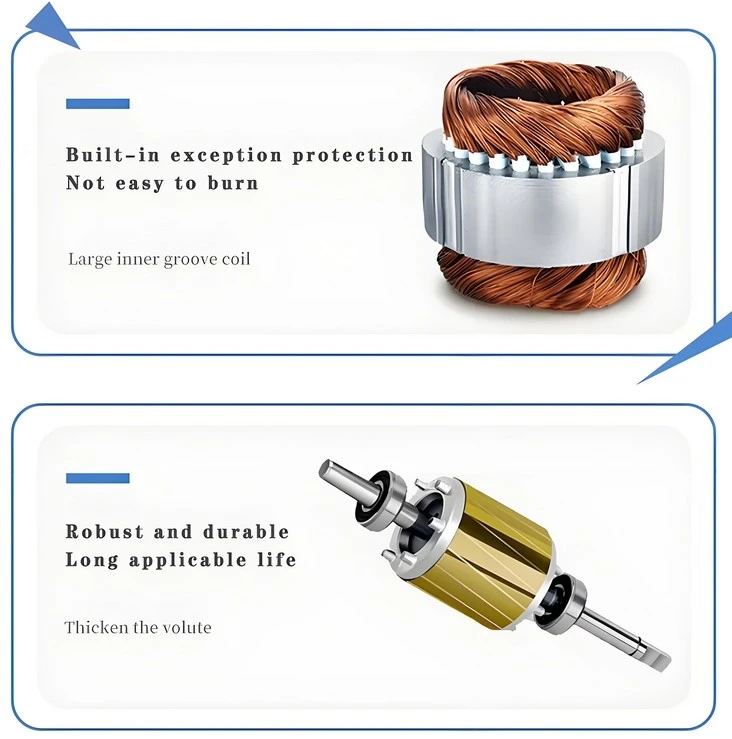

Optional fully protected motor and safety control cabinet provide multiple safeguards for safe pump operation.

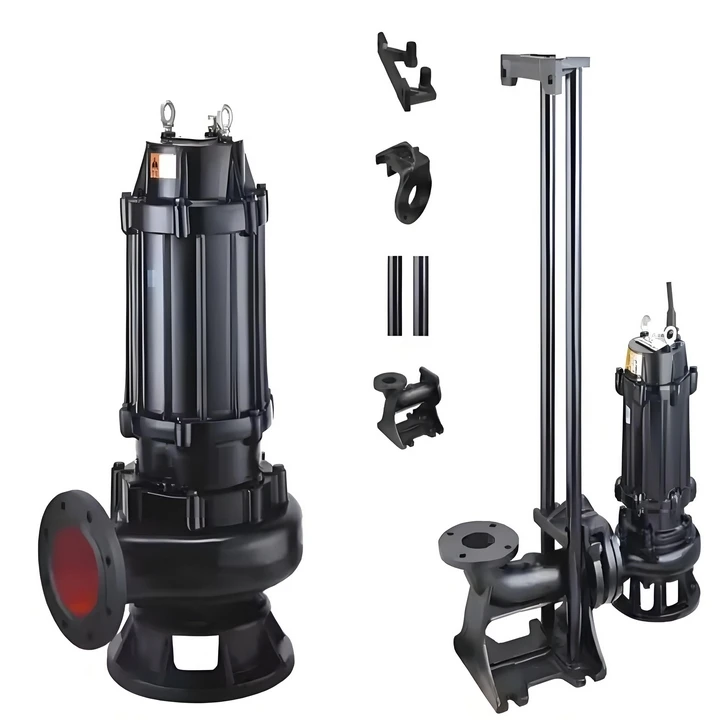

Self-coupling installation eliminates the need for personnel to enter sewage pits, greatly facilitating on-site operations.

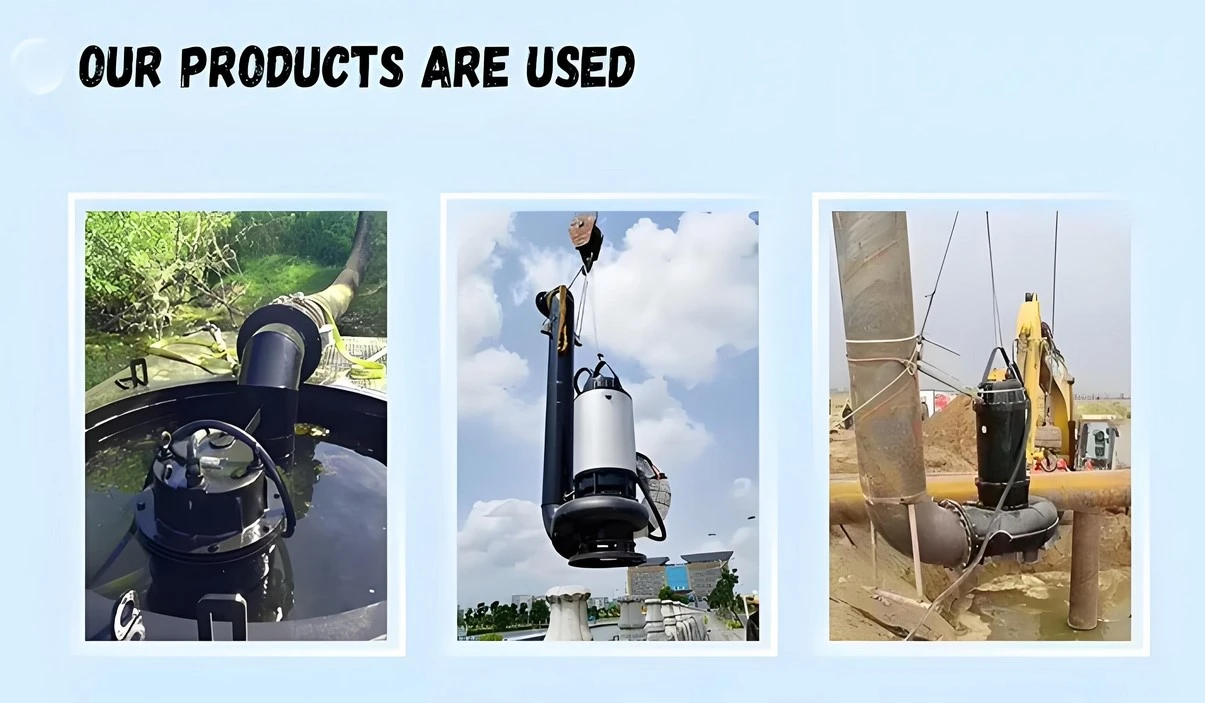

Applications
The WQ sewage pump is suitable for:
Discharging heavily polluted industrial wastewater.
Sewage discharge stations and urban wastewater treatment systems.
Civil air defense system drainage stations.
Sewage discharge in hospitals and hotels.
Municipal engineering construction sites and mining operations.
Rural biogas digesters and farmland irrigation.
Cast iron submersible sewage pump can also transport granular sewage, pollutants, clean water, and slightly corrosive media.
Company Advantages
Competitive pricing and high cost-performance ratio compared to equivalent pump products and complete equipment sets.
Years of industry experience and a commitment to craftsmanship ensure high-quality products.
Ample accessories and large pump body inventory enable fast supply to meet your needs.
Comprehensive product range for clean water, sewage, high-temperature media, and corrosive media transportation.
High-quality components, precision machining, and meticulous assembly ensure durability and long service life.
Unified after-sales hotline with 24/7 support to resolve your issues promptly.
Performance Table
|
Type |
Outlet Dia. (mm) |
Capacity (m3/h) |
Head (m) |
Power (kw) |
Efficiency (%) |
|
50WQ15-8-0.75 |
50 |
15 |
12 |
0.75 |
52 |
|
65WQ30-10-2.2 |
65 |
30 |
10 |
2.2 |
62 |
|
80WQ50-8-2.2 |
80 |
50 |
8 |
2.2 |
60 |
|
100WQ80-7-3 |
100 |
80 |
7 |
3 |
64 |
|
150WQ150-10-7.5 |
150 |
150 |
10 |
7.5 |
72 |
|
200WQ300-10-15 |
200 |
300 |
10 |
15 |
74 |
|
250WQ500-10-30 |
250 |
500 |
10 |
30 |
72 |
|
300WQ700-19-55 |
300 |
700 |
19 |
55 |
75 |
|
350WQ1100-25-110 |
350 |
1100 |
25 |
110 |
76 |
