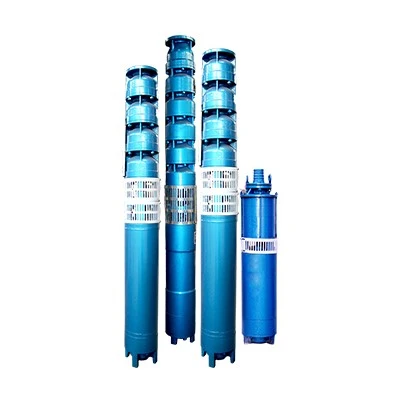

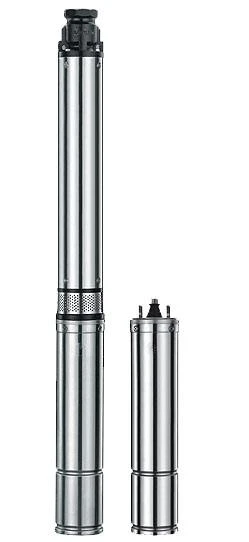

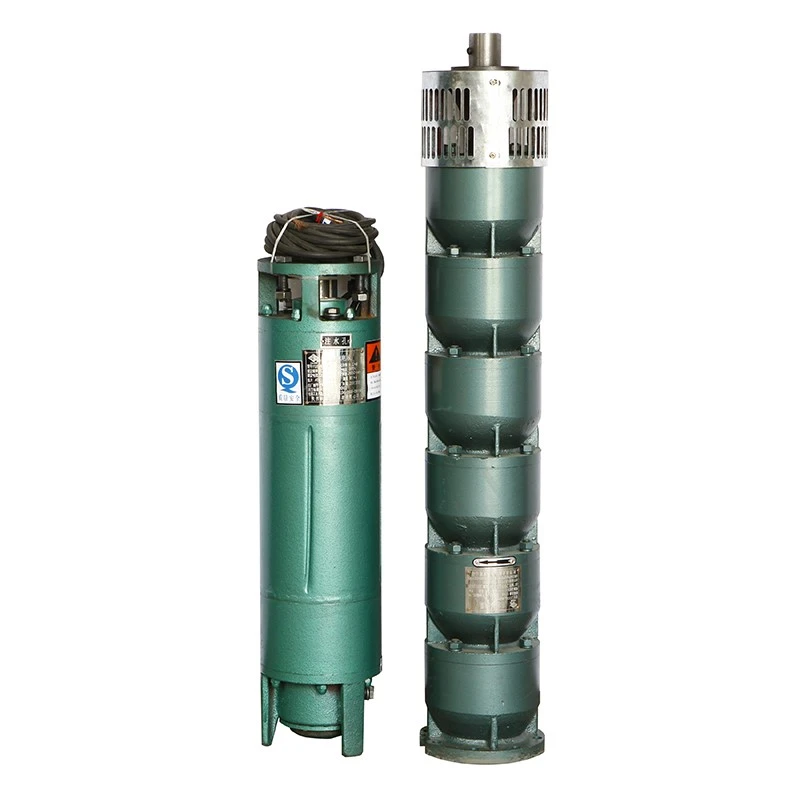

Deep well submersible pump is a submersible water lifting equipment that is directly connected to a motor and a water pump. deep well pump is widely used in water lifting projects such as extracting groundwater from deep wells, rivers, reservoirs, and canals, as well as in fields such as agricultural irrigation, human and animal water use, and urban water supply and drainage.
Water pump: mainly composed of impeller, guide housing, pump shaft, rubber bearings and other components.
Submersible motor: The submersible motor is a closed water filled wet, vertical three-phase asynchronous motor.
Water pipeline: used to transport the water flow generated by the water pump to the required location.
Control switch: The control switch is used to control the start and stop of the submersible pump.
(1) The inlet of the water pump must be below 1 meter of the dynamic water level, but the diving depth should not exceed 70 meters below the static water level. The lower end of the motor should be at least 1 meter below the bottom of the well.
(2) Motors with rated power less than or equal to 15kw (25kw when power supply allows) shall be started at full voltage.
(3) The rated power is greater than 15kw, and the motor adopts voltage reduction starting.
(4) The usage environment must comply with the prescribed conditions.
Characteristics of deep well pumps
Efficient and energy-saving
Simple structure
Safe and reliable
Wide applicability
application
Deep well submersible pump is a water-lifting device that works by submerging the motor and pump directly underwater. It's mainly used to:
Pump groundwater from deep wells.
Lift water from rivers, reservoirs, and canals.
Where It's Used:
Farm irrigation – watering crops.
Mountain villages – supplying water for people and livestock.
Cities, factories, railways, mines & construction sites – moving water in and out.
Why Safety & Reliability Matter:
Since the motor and pump run underwater, their safety and reliability are crucial. A well-built deep well pump:
Works efficiently without breakdowns.
Lasts longer with fewer problems.
That's why high-quality, dependable deep well pumps are the best choice for any job.
