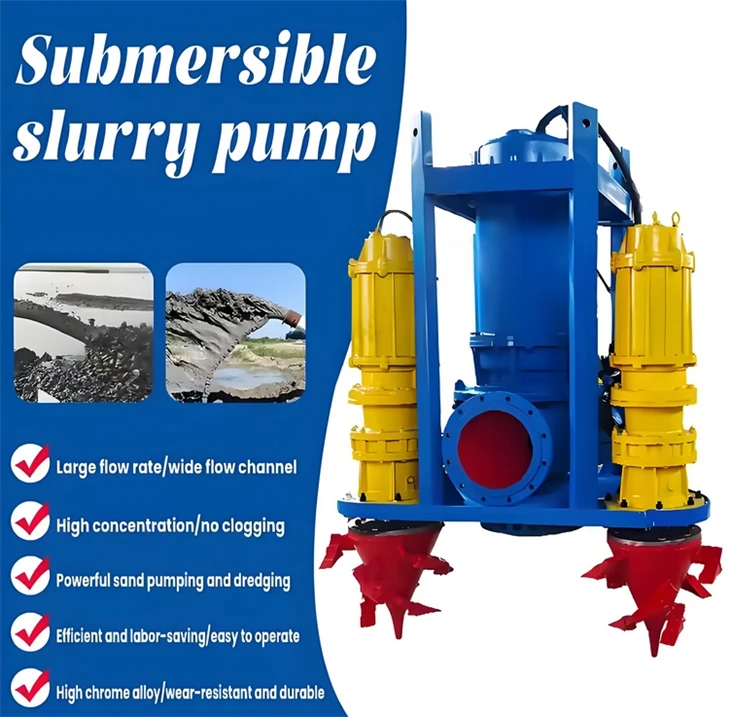

submersible mixing, sand suction and sand blowing integrated slurry pump. Dredging mud seawater pump is mainly used for river dredging, sand pumping for farmland and sedimentation tank treatment.
Compared with ordinary mud pump and slurry pump, this series of products have the following characteristics:
1. it is not limited by suction range and has high slag suction efficiency.
2. there is no need to equip with auxiliary mixing or spraying device, which is easier to operate.
3. it is not necessary to build complex ground protection and fixed devices for the motor to dive underwater, so it is easier to manage.
4. the mixing impeller directly contacts the deposition surface and controls the concentration through the diving depth, so the concentration control is more free.
5. the equipment works directly under the water, without noise and vibration, and the site is cleaner.

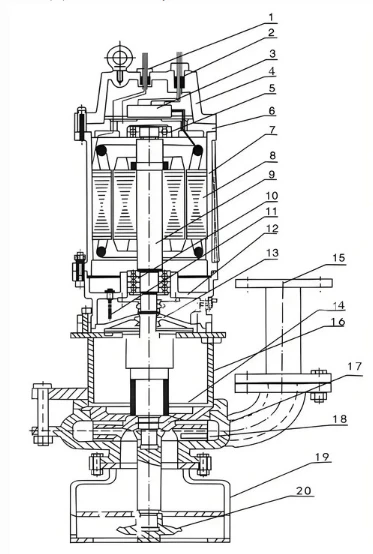

| 1.signal cable | 2.motor wiring | 3.junction box | 4.motor cover | 5.bearing |
| 6.upper shaft | 7.motor housing | 8.stator | 9.shaft | 10.bearing |
| 11.oil water probe | 12.oil chamber | 13.mechanical seal | 14.guard plate | 15.outlet pipe |
| 16.frame | 17.pump boby | 18.impeller | 19.base strainer | 20.reamer |
| Model |
capacity(m3/h)
|
head(m)
|
power(kw)
|
speed(r/min)
|
| 40ZJQ8-12 | 8 | 12 | 2.2 | 1400 |
| 40ZJQ15-12 | 15 | 12 | 3 | 1400 |
| 50ZJQ25-15 | 25 | 15 | 4 | 1400 |
| 50ZJQ17-10 | 17 | 10 | 4 | 1400 |
| 65ZJQ71-25-11 | 71 | 25 | 11 | 1400 |
| 65ZJQ47-34 | 47 | 34 | 11 | 1400 |
| 80ZJQ80-18 | 80 | 18 | 11 | 1400 |
| 80ZJQ45-23 | 45 | 23 | 15 | 1400 |
| 100ZJQ214-32 | 214 | 32 | 45 | 1400 |
| 100ZJQ293-24 | 293 | 24 | 45 | 980 |
| 150ZJQ635-40 | 635 | 40 | 155 | 980 |
