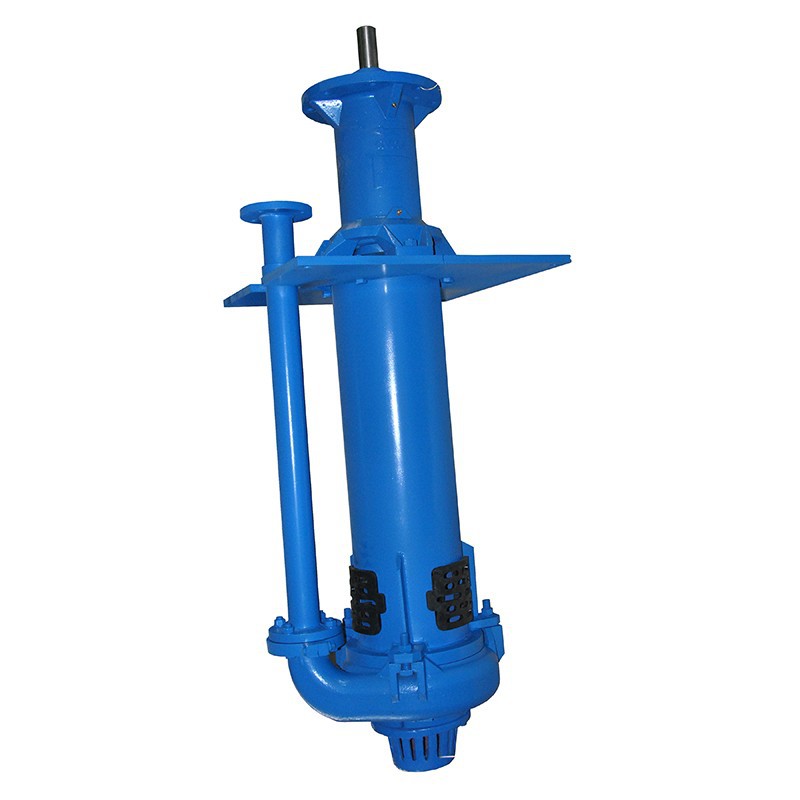

WSP,WSPR type pumps are Corrosion Resistance Vertical Pump,they can Suitable for conveying corrosive, coarse particle,high concentration slurry.Pumps generally enter the pool or pit for operation.Corrosion Resistance Vertical Pump does not require any shaft seals or shaft seal water, and can work normally even under conditions of insufficient suction capacity.The overcurrent components and shafts are made of metal materials, suitable for conveying abrasive slurry.WSP (R) submersible pumps are widely used in metallurgy, mining, coal, power, building materials and other sectors.The components of the WSP(R) pumps immersed in the liquid are lined with rubber, suitable for transporting corrosive slurry.
40PV(L)-WSP
40：Discharge outlet diameter
PV:PV type bearing components
L：Extended shaft series
WSP:Submersible pumps
Structural diagram
1.Shaft 2.Bearing assembly 3.Mounting plate 4.Support 5.Discharge pipe 6.Sealing gasket 7.Back guard plate 8.Impeller 9.Pump body 10.Filter screen
performance parameter
|
Type |
Capacity (m3/h) |
Head (m) |
Speed (r/min) |
shaft power (kw) |
Motor power (kw) |
Motor model |
caliber(mm) |
|
|
Inlet |
outlet |
|||||||
|
100RV-WSP(R) |
43.2 104.4 133.2 |
9 8.1 7.5 |
600 |
2.7 4.2 4.8 |
5.5 7.5 11 |
Y160M2-8 Y160L-8 Y180L-8 |
175 |
100 |
|
100RV-WSP(R) |
57.6 124.2 154.8 |
12.2 11 10.2 |
700 |
4.8 6.7 7.7 |
11 15 |
Y160L-6 Y180L-6 |
175 |
100 |
|
100RV-WSP(R) |
61.2 129.6 162 |
13.4 12 11.2 |
730 |
5.6 7.7 8.8 |
11 15 18.5 |
Y180L-8B5 Y200L-8B5 Y225S-8B5 |
175 |
100 |
|
100RV-WSP(R) |
64.8 142.2 174.6 |
16 14.4 13.3 |
800 |
7 10.1 11.3 |
15 18.5 |
Y160L-6 Y200L1-6 |
175 |
100 |
|
100RV-WSP(R) |
68.4 151.2 187.2 |
18 16.4 15 |
850 |
8.4 12.3 13.6 |
15 18.5 22 |
Y160L-6 Y200L1-6 Y200L2-6 |
175 |
100 |
|
100RV-WSP(R) |
75.6 160.2 194.4 |
20.3 18 16.7 |
900 |
10.4 14.3 15.8 |
18.5 22 30 |
Y200L1-6 Y200L2-6 Y225M-6 |
175 |
100 |
|
100RV-WSP(R) |
81 174.6 214.2 |
23.8 21.5 20 |
980 |
13 18.6 20.8 |
22 30 37 |
Y200L2-6 Y225M-6 Y250M-6 |
175 |
100 |
|
100RV-WSP(R) |
82.8 176.4 217.44 |
25 22.5 20.7 |
1000 |
14.1 19.6 21.9 |
22 30 37 |
Y180L-4 Y200L-4 Y225S-4 |
175 |
100 |
|
100RV-WSP(R) |
86.4 185.4 230.4 |
27.5 24.5 22.5 |
1050 |
16.2 22.5 25.2 |
30 37 45 |
Y200L-4 Y225S-4 Y225M-4 |
175 |
100 |
|
100RV-WSP(R) |
90 194.4 240.48 |
30.3 27 25 |
1100 |
18.5 25.9 29.2 |
30 37 45 |
Y200L-4 Y225S-4 Y225M-4 |
175 |
100 |
|
100RV-WSP(R) |
97.2 205.2 243 |
33 29.5 27.4 |
1150 |
21.8 29.9 33.3 |
30 45 |
Y200L-4 Y225M-4 |
175 |
100 |
|
100RV-WSP(R) |
100.8 212.4 262.8 |
35.8 32.1 29.5 |
1200 |
24.5 33.7 37.7 |
37 45 |
Y225S-4 Y225M-4 |
175 |
100 |
|
150SV-WSP(R) |
118.8 208.8 288 |
8.1 8 6.5 |
500 |
6.4 8.5 9.6 |
11 15 |
Y180L-8 Y200L-8 |
150 |
|
|
150SV-WSP(R) |
133.2 223.2 316.8 |
10.6 9.6 8 |
550 |
8.5 11 13 |
15 18.5 22 |
Y200L-8 Y225S-8 Y225M-8 |
150 |
|
|
150SV-WSP(R) |
140.4 244.8 342 |
12.7 11.4 9.7 |
600 |
10.8 14.3 17 |
22 30 |
Y225M-8 Y250M-8 |
150 |
|
|
150SV-WSP(R) |
154.8 270 367.2 |
15 13.4 11.4 |
650 |
13.7 18.6 21.5 |
22 30 37 |
Y225M-8 Y250M-8 Y280S-8 |
150 |
|
|
150SV-WSP(R) |
154.8 288.4 396 |
17.5 15.5 13.2 |
700 |
16.4 22.6 26.8 |
30 37 45 |
Y225M-6 Y250M-6 Y280S-6 |
150 |
|
|
150SV-WSP(R) |
162 297 421.2 |
19 16.9 14.5 |
730 |
18.6 25.8 31.4 |
37 45 |
Y280S-8 Y280M-8 |
150 |
|
|
150SV-WSP(R) |
183.6 324 450 |
22.5 20.2 17.2 |
800 |
25 33.6 39.8 |
37 55 |
Y250M-6 Y280M-6 |
150 |
|
|
150SV-WSP(R) |
208.8 352.8 489.6 |
25.5 22.5 19.2 |
850 |
32.2 40.8 56.9 |
55 75 |
Y280M-6 Y315S-6 |
150 |
|
|
150SV-WSP(R) |
212.4 367.2 511.2 |
28.8 25.5 21.9 |
900 |
37 48.1 57.5 |
75 90 |
Y315S-6 Y315M-6 |
150 |
|
