1.Compact Plug-and-Play Design

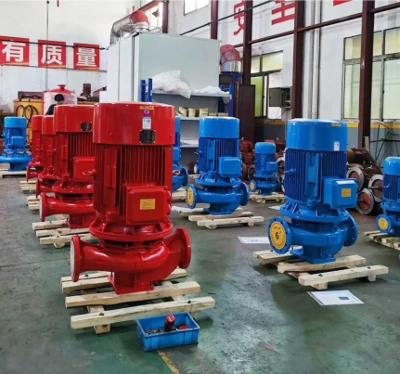

Pipeline booster pump fits directly into your existing pipeline like a valve - same-sized inlet/outlet on one straight line. Takes up no more space than a water meter.
2.Super-Stable Motor Connection
The impeller attaches straight to the motor shaft (short & sturdy design). Handles push/pull forces perfectly during operation - runs smooth as butter with barely any vibration or noise.
3.Industrial-Grade Seals
Features either:
• Single heavy-duty mechanical seal
• Double-seal safety system
With space-age titanium alloy rings and heat-resistant materials that outlast standard seals 3x longer.
4.Maintenance Made Easy
Forget dismantling pipes! Just unscrew the coupling nut to pull out the entire working unit - takes minutes, not hours.
5.Flexible Setup Options
Need higher head? → Just connect in series.
Need greater flow? → Simply run in parallel.
6.Install Any Which Way
Mount vertically like a fire hydrant or horizontally like traditional pumps - works equally well in both positions.
Operating Conditions
1.Suction pressure ≤ 1.0 MPa, or the maximum operating pressure of the pump system ≤ 1.6 MPa (i.e., pressure at the suction nozzle + pump head ≤ 1.6 MPa).
2.Keep it cool - works in temps below 104°F and humid places below 95% humidity
3.The liquid can have tiny bits in it ( 0.1% by volume), nothing bigger than a grain of sand (under 0.2mm).
4.The ambient altitude should not exceed 1,000 m. If it does, this must be specified when ordering so that we can provide more reliable products.
Applications:
1.ISG Vertical Single-Stage Single-Suction Centrifugal Pump: Used for clean water or liquids with similar physical and chemical properties. Suitable for industrial and municipal water supply, drainage, high-rise building water pressure systems, garden irrigation, firefighting booster systems, long-distance water transport, and heating/cooling circulation systems. Operating temperature: ≤ 60°C.
2.IRG Vertical Single-Stage Single-Suction Hot-Water Pump: Used in metallurgy, chemical industries, textiles, woodworking, paper production, boiler water circulation in hotels, bathrooms, and restaurants, as well as residential heating systems. Operating temperature: ≤ 99°C.
Key Components
1.Y/Y2 Series Motor: The pump's driving part, featuring a close-coupled design.
2.Pump Shaft: Coaxial with the motor for high concentricity, ensuring quiet and vibration-free operation.
3.Water Deflector: Prevents water from entering the motor in case of seal leakage.
4.Pump Cover: Designed to share the same end cover as the motor, reducing axial dimensions and simplifying the structure.
5.Mechanical Seal: Made of stainless steel, tungsten carbide, and fluorine rubber for superior durability, sealing, and leak resistance.
6.Pressure Plug: Provides a mounting point for a pressure gauge to monitor the pump's operation.
7.Pump Body: Slows fluid velocity to convert kinetic energy into pressure energy.
8.Drain Plug: Fully drains the pump to facilitate servicing or prolonged inactivity.
9.Air Release Valve: Releases air to ensure the pump starts properly.
10.Impeller: The core component, featuring vanes that rotate and propel liquid using centrifugal force.
If a protective cover is added,Pipeline booster pump can be placed outdoors.
