ZJQ Customizable Vertical Slurry Pump

ZJQ Customizable Vertical Slurry Pump Overview

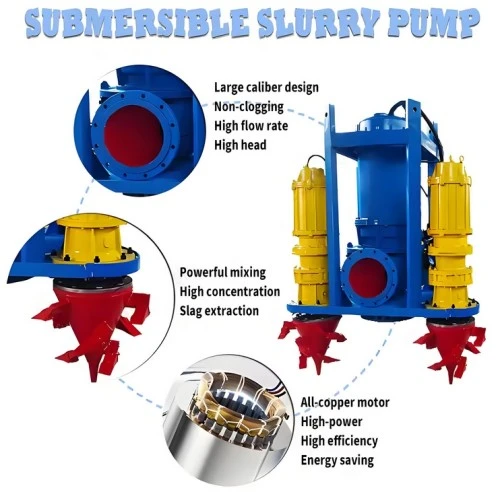

This product not only features a main page impeller but also adds a set of stirring impellers at the bottom. These impellers can spray the settled sludge into a mixed liquid consisting of water and solid particles. This enables the water pump to achieve high-concentration transportation without the need for auxiliary devices. The unique sealing device can effectively balance the pressure inside and outside the oil chamber, ensuring that the pressures at both ends of the mechanical seal are balanced. This maximally guarantees the reliable operation of the mechanical seal and significantly extends its service life. The motor can be equipped with various protection devices such as water level detection and overheating protection according to user requirements, allowing the product to operate safely and stably in harsh working conditions for a long time.

ZJQ Customizable Vertical Slurry Pump Structural Characteristics and Working Principle
The QSZ type submersible slurry pump is a pump and motor integrated unit with the motor shaft coaxial to the pump. During operation, the motor shaft drives the pump impeller to rotate, transmitting energy to the slurry medium, causing it to generate a certain flow velocity and drive the solid particles to flow, thereby achieving slurry transportation.
Its main features are as follows:

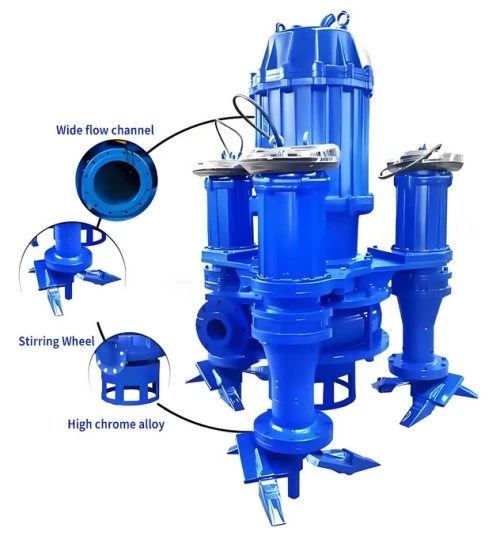

The entire machine adopts a dry-type motor and pump structure. The motor is protected by mechanical seals, effectively preventing high-pressure water and impurities from entering the motor cavity. Besides the main impeller, there is also a mixing impeller, which can stir the sludge deposited at the bottom into a turbulent state and extract it. The main flow components such as the impeller and the mixing impeller are made of high wear-resistant materials, which are resistant to wear, corrosion, have no blockage, and have strong sewage discharge capacity. They can effectively pass through larger solid particles. It is not limited by the suction height, has high suction efficiency, and can clean the sludge more thoroughly. No auxiliary vacuum pump is required, resulting in lower investment. No auxiliary stirring or jetting devices are needed, making the operation simpler. The motor is submerged underwater, eliminating the need for complex ground protection and fixation devices, making management easier. The mixing impeller directly contacts the deposition surface, controlling the concentration through the submersion depth, thus achieving more flexible concentration control. The equipment works directly underwater, without noise or vibration, and is cleaner in the field.

ZJQ Customizable Vertical Slurry Pump Selection Design
Broadcast Editor
The selection and design of submersible slurry pumps have a significant impact on the service life and operational stability of the slurry pumps. A scientific and reasonable selection design will determine whether your slurry pump can achieve the best efficient operation state.
The three main characteristics of an efficient slurry pump are as follows:
First, the operating efficiency of the slurry pump is very high with low losses.
Second, the service life of the flow components of the pump is relatively long, saving production costs.
Third, the entire industrial system operates stably and will not be affected by the operation of the pump, thus not affecting the overall operation of the industrial system.
Fourth, the selection parameters: outlet diameter, flow rate, dust emission, motor power, impeller speed, pumping rate, maximum particle size, weight.

When the slurry pump is in operation, it needs to be placed on land, with the suction pipe placed in water, and the pump needs to be primed for startup. For the mud pump and the submersible slurry pump, due to structural limitations, the motor needs to be placed above the water surface, and the pump is placed in the water. Therefore, it must be fixed; otherwise, if the motor falls into the water, it will cause the motor to be damaged. Moreover, since the length of the long shaft is generally fixed, the installation and use of the pump are rather troublesome, and the application scenarios are subject to many restrictions.
If there is a spare pump, it is best to use the two pumps alternately. If the pump gets stuck, the only option is to repair the pump. A net can be added at the water inlet to prevent excessive impurities from entering the pump, thus reducing the probability of pump sticking!
The pump should be divided into two aspects: electrical and mechanical. For the mechanical aspect, the previous maintenance records should be retrieved and compared to understand. Secondly, for the electrical aspect, it is necessary to know the power of each pump's motor and have a certain understanding of its control system. For slurry pumps with mechanical seals, the supply of shaft seal water must be guaranteed. Running without water is strictly prohibited, otherwise the mechanical seal will be burned out.
