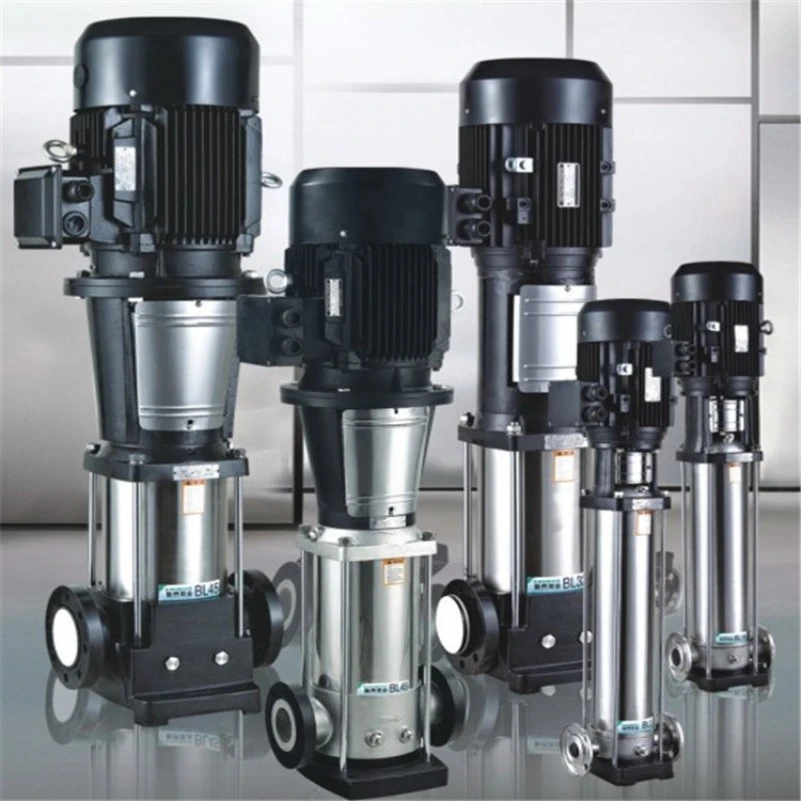

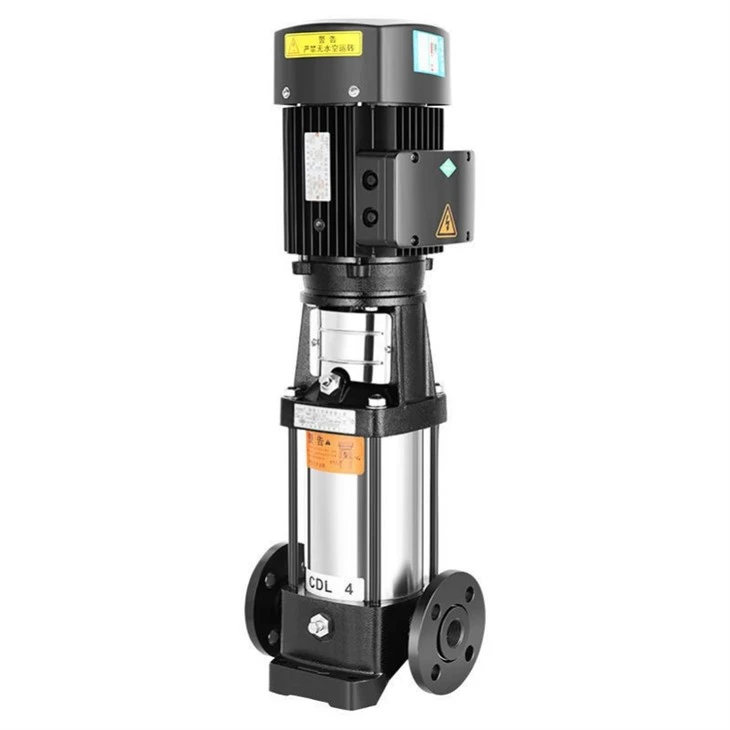

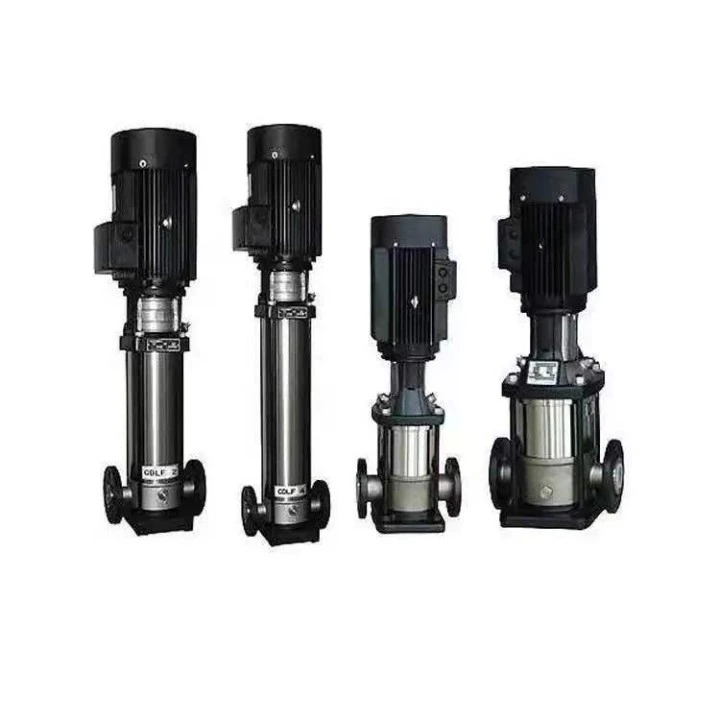

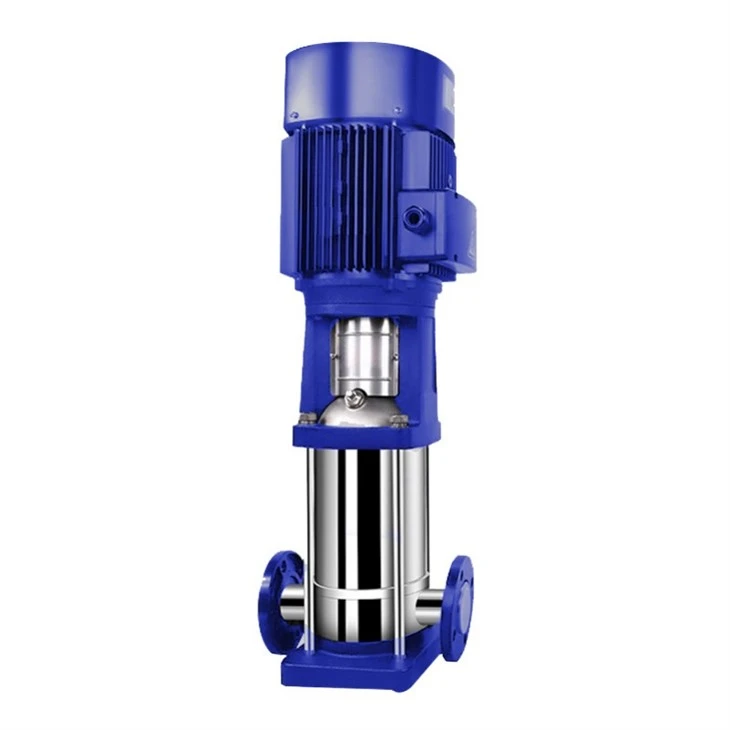

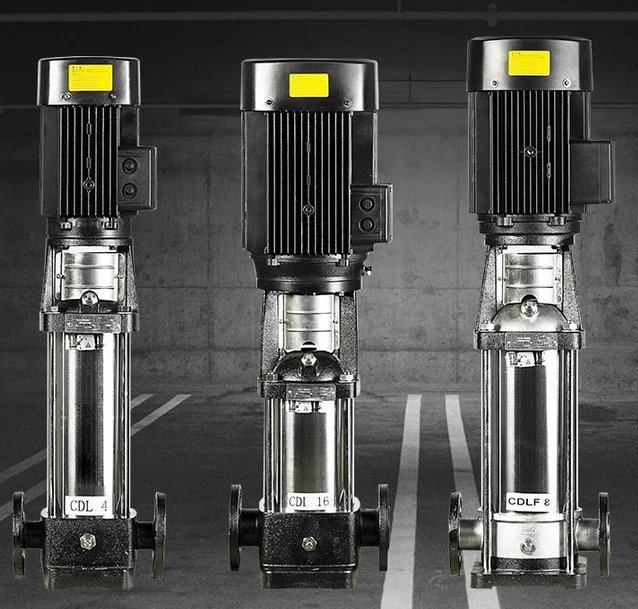

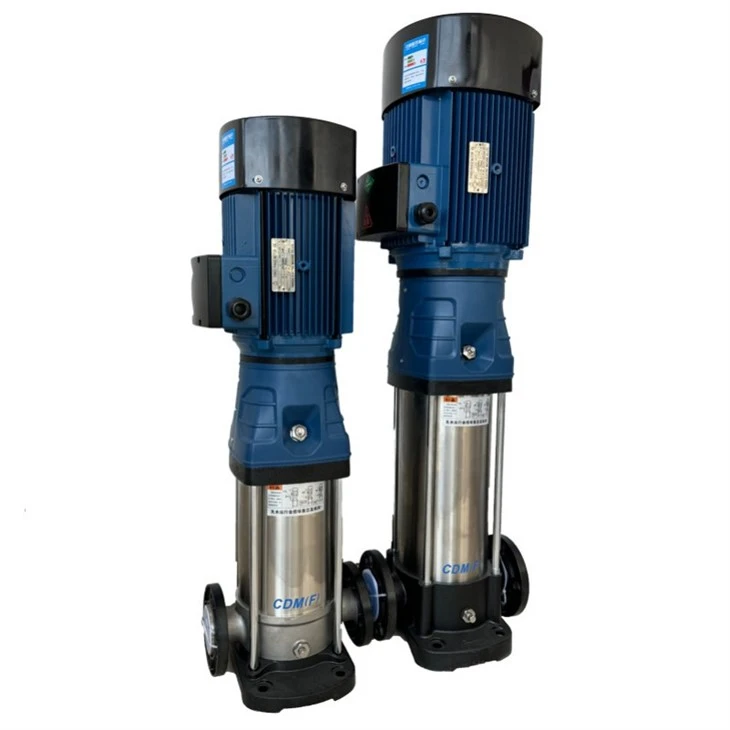

Cdl Series Vertical Multistage Pump

The cdl Series Vertical Multistage Pump CDL vertical multi-stage centrifugal pump saves space with its compact design. Multiple stages of impellers enable high head. It is energy-efficient and reduces consumption, ensuring stable operation and extending lifespan. It is widely used in construction, industry, agriculture and other fields. Intelligence and material innovation will drive its future to be more efficient and reliable.

cdl Series Vertical Multistage Pump In numerous fields of modern industry and daily life, pumps play a crucial role. Among them, the CDL vertical multi-stage centrifugal pump, with its unique performance and wide applicability, has become the ideal choice for many users.
The structural design of the CDL vertical multi-stage centrifugal pump is highly ingenious. It adopts a vertical structure, which significantly reduces the pump's floor space and offers obvious advantages when installed in limited spaces. The multi-stage design enables the pump to generate a higher head. The multiple stages of impellers are arranged sequentially, and the liquid gains additional energy after passing through each stage of the impeller, thus being able to transport the liquid to a higher position or a greater distance. Its compact structure not only saves space but also facilitates installation and maintenance, reducing the cost and difficulty for users in equipment installation and daily maintenance.
cdl Series Vertical Multistage Pump From the perspective of performance characteristics, the CDL vertical multi-stage centrifugal pump has significant advantages in terms of high efficiency and energy conservation. The advanced hydraulic model design enables the pump to minimize energy loss during operation, thereby improving energy utilization efficiency. Compared with traditional water pumps, under the same working conditions, the CDL vertical multi-stage centrifugal pump can complete the same tasks with lower energy consumption, saving users a considerable amount of electricity costs. Moreover, the pump has extremely high operational stability. Precise manufacturing processes and strict quality inspections ensure that the components of the pump fit precisely, reducing vibration and noise. Stable operation not only extends the pump's service life but also creates a quiet and comfortable working environment for users.

The application scope of CDL vertical multi-stage centrifugal pumps is extremely wide. In the construction field, it can be used in the water supply systems of high-rise buildings, enabling the stable transportation of water to all floors and meeting the daily water needs of residents. In industrial production, this pump can be used in industries such as chemical engineering, pharmaceuticals, and food for liquid transportation and circulation systems. For example, in the chemical production process, it can accurately transport various chemical raw materials to reaction vats to ensure the smooth progress of the production. In agricultural irrigation, CDL vertical multi-stage centrifugal pumps can also play an important role, transporting water from the water source to the farmland to improve irrigation efficiency.
To ensure the normal operation and service life of the CDL vertical multi-stage centrifugal pump, regular maintenance work is of vital importance. Periodically inspect the pump for any damage, leakage, etc., and promptly replace worn-out seals and bearings and other vulnerable parts. Ensure that the inlet and outlet pipes of the pump are unobstructed to prevent debris from blocking and affecting the pump's performance. Additionally, lubricate and clean the pump according to the prescribed time and requirements, which can effectively reduce internal friction and corrosion in the pump, ensuring its efficient operation.
With the continuous advancement of technology, the CDL vertical multi-stage centrifugal pump is also constantly evolving and innovating. In the future, it will develop towards a more intelligent and efficient direction. For instance, by introducing an intelligent control system, the pump can achieve automatic adjustment and remote monitoring, further enhancing the pump's operational efficiency and management level. In terms of materials and manufacturing processes, continuous improvements will be made to increase the pump's corrosion resistance and reliability, enabling it to adapt to more complex and harsh working environments.
The CDL vertical multi-stage centrifugal pump, with its unique structure, outstanding performance, wide range of application fields and promising development prospects, has become a brilliant star in the modern water pump market. Whether in industrial production or daily life, it provides powerful support and protection for our production and life. We believe that in the future, the CDL vertical multi-stage centrifugal pump will play an even more important role in more fields and make greater contributions to promoting the development and progress of society.

Purpose

Water supply: Water treatment and distribution at the water plant, water supply to different areas within the plant, booster pumping at the main pipes, and booster pumping for high-rise buildings.
Industrial pressurization: Process water system, cleaning system, high-pressure flushing system, fire protection system.
Industrial liquid transportation: Cooling and air conditioning systems, boiler feedwater and condensation systems, machine tool accessories, acids and alkalis.
Water treatment: Ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
Irrigation: Field irrigation, sprinkler irrigation, drip irrigation.
Operating conditions
 A thin, clean, non-flammable and non-explosive liquid that does not contain solid particles or fibers.
Liquid temperature: Normal temperature type -15℃ to +70℃; Hot water type +70℃ to 120℃
Ambient temperature: Maximum +40℃
Altitude: Maximum 1000 meters

Pump

CDL/CDLF is a non-self-priming vertical multi-stage centrifugal pump for standard motors. The motor shaft is directly connected to the pump shaft through the pump head using a coupling. The pull rod bolts fix the pressure-resistant cylinder and flow components between the pump head and the inlet and outlet sections. The inlet and outlet of the pump are on the same straight line at the pump base. This pump can be equipped with an intelligent protector as needed to effectively protect the pump from dry running, phase loss, overload, etc.
Motor

The motor is a fully enclosed, cold-air type standard motor.
 Protection level: IP5
 Insulation class: F
 Standard voltage, 50Hz: 1x220-230/240V, 3x200-220/346-380V, 3x220-240/380-415V, 3x380-415V.
