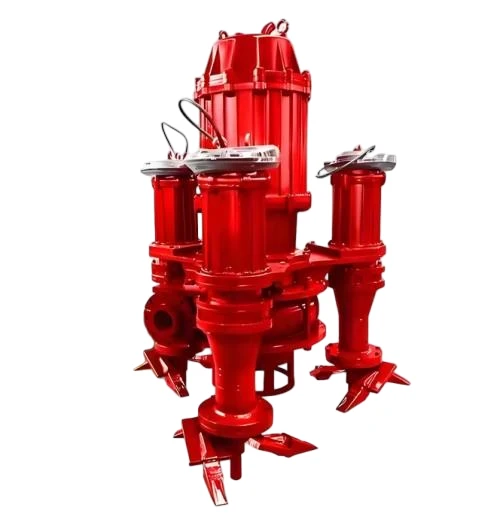

Industrial Centrifugal Submersible Slurry Pump For Mine Tailings & Sewage

Submersible Slurry Pump: Definition, Structure and Selection Details
The submersible slurry pump is specifically designed for transporting slurry containing solid particles. It is widely used in industries such as mining, power, and metallurgy. It can efficiently handle complex media like mineral slurries and sludges, and has become an indispensable tool in industrial production.
Definition and Usage

Component composition
The entire machine is mainly composed of four core components:
Pump head: It includes a impeller, a volute, and wear-resistant plates. It is made of high-chromium alloy. The special impeller design can reduce the risk of blockage;
Motor: It has a submersible structure and has excellent waterproof sealing, enabling long-term operation underwater;
Sealing system: A mechanical seal combined with an oil chamber design can prevent slurry from entering the motor;
Stirring impeller (for some models): A stirring device is installed at the bottom, which can stir up the sediment to create turbulence and improve the extraction efficiency.
Selection Key Factors
When choosing a pump, the following aspects should be given priority attention:
1. Basic parameters: The flow rate must be sufficient for production needs, the head should account for the pipeline resistance, and a 5%-10% margin should be reserved;
2. Slurry characteristics: Density affects power selection, viscosity determines the rotational speed of the impeller, and the content of solids and particle size affect the material selection;
3. Working environment: In high-temperature environments, a pump with temperature resistance should be selected, for corrosive media, stainless steel should be used, and installation methods include stand-alone and horizontal types;
4. Comprehensive assessment: High efficiency can save energy, a simple structure is easy to maintain, and it is necessary to balance the purchase cost and the subsequent maintenance cost.

This series of products has the following characteristics when compared with ordinary mud pumps and slurry pumps:
It has no limit on suction depth, has high slag suction efficiency, and can achieve more thorough dredging.
2. All the flow components are made of wear-resistant alloy, ensuring a long service life.
3. No auxiliary stirring or spraying devices are required. The operation is simpler, with lower investment and faster returns.
4. The motor can be submerged underwater without the need for complex ground protection and fixation devices, making management much easier.
5. The impeller directly contacts the deposition surface and the concentration can be controlled by adjusting the submersion depth, thus achieving more flexible concentration control.
6. The equipment works directly underwater without any noise or vibration, making the site cleaner.
